3D Geonet Plastic Composite Drainage Geonet Designed in with 5.0mm-12.0mm Core Thickness

Ask Lasest Price
Brand Name :	YBYG
MOQ :	1000
Supply Ability :	10000 Square Meter/Square Meters per Day
Price :	$1.89/square meters 1000-9999 square meters

Add to Cart

Product Details
Company Profile

3D Geonet Plastic Composite Drainage Geonet Designed in with 5.0mm-12.0mm Core Thickness

Product Description

Drainage Net, also called Composite Geonet

Drainage Net, also called Composite Geonet, is a two or three-layer three-dimensional drainage geosynthetic product which are often made with polypropylene PP or regenerated HDPE (geonet) and covered with double-sided thermally heat-bonded nonwoven geotextile on both sides or one side. It has excellent performance than traditional draining gravel. So it becomes a good alternative for gravel in drainage application. Our drainage net is widely used for landfill, railway system drainage, road drainage, tunnel and retaining wall.

3D composite drainage network

Composite Drainage Network is a new type of dewatering geotechnical material, which the raw material is HDPE and manufactured via particular extrusion forming technique. It has three levels, the inner fillet has strong rigidity, arrange longitudinal to form dewatering channel, the upper and bottom fillet form support to avoid geotextile inserting into dewatering channel, that means even if under high load it can also keep good dewatering property. It is the best dewatering material currently who has below function:" filter -- dewatering -- ventilate -- protect".

The geonet has high drainage performance which is made of high quality polyethylene resin, adding 2-3% carbon black, anti-UV and anti-oxidant processed by special extruding technology. The 3D composite drainage net combines the characteristics and functions of geonet and geotextile, it has the comprehensive charateristics of anti-filtration, good drainage, air permeability and high strengthen and protection reinforcement.It is an ideal new drainage geo material.

Specification

Property	Unit	BC63/D200	BC70/D200	BC80/D200	BC90/D200	Test Standard
Hydraulic conductivity (MD)	m2/s	2.8×10-3	3.2×10-3	4.0×10-3	5 x10-3	ASTM D4716
Puncture Resistance	KN/m	0.17	0.17	0.17	0.17	ASTM D7005
Thickness	mm	6.3	7	8	9	ASTM D5199
Density	g/cm-3	0.94	0.94	0.94	0.94	ASTM D1505
Carbon Black Content	%	2	2	2	2	ASTM D1603
Tensile strength (MD)	kN/m	8	10	12	14	ASTM D7199
Hydraulic conductivity (MD)	m2/s	8	10	12	14	ASTM D4716
Unit weight	g/m2	200	200	200	200
Geotextile type	Continuous filament non-woven geotextile

Machines

Product Application

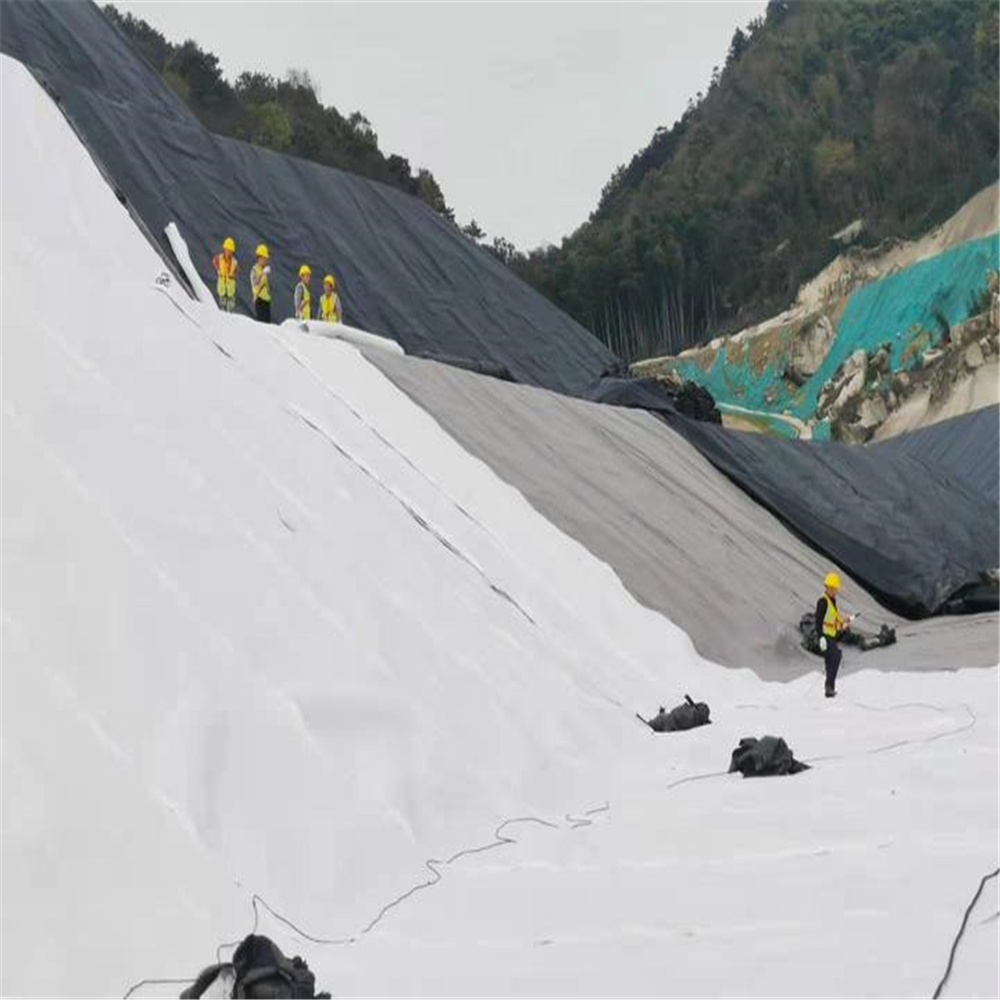

1. Landfill drainage;

2. Roadbed and road drainage;

3. Railway drainage, tunnel drainage, underground structure drainage.

4.Theretaining back wall drainage,

5. Gardens and sports grounds drainage

Packing & Delivery

Packing: Plastic woven bags
