3D Composite Drainage Geonet for Greening System and Other Environmental Projects

Ask Lasest Price
Brand Name :	YBYG
Model Number :	drainage
MOQ :	1000
Supply Ability :	10000 Square Meter/Square Meters per Day
Price :	$3.15/square meters 1000-4999 square meters

Add to Cart

Product Details
Company Profile

3D Composite Drainage Geonet for Greening System and Other Environmental Projects

Product Description

Composite drainage mat geonet network

Composite drainage network (also known as 3D composite drainage mats) is composed of a three-dimensional plastic mesh with double-sided bonded seepage geotextiles, which can replace traditional sand and gravel layers and mainly been used for drainage of landfills, subgrades and inner walls of tunnels. In railway, highway and other transportation infrastructures, service life of the project has an inseparable relationship with its own drainage system and geosynthetics are an important part of the drainage system.

Product specification:

geonet thickness 3-8mm, width 2-6m,the length is depend on your requirements

Specification

Property	Unit	BC63/D200	BC70/D200	BC80/D200	BC90/D200	Test Standard
Hydraulic conductivity (MD)	m2/s	2.8×10-3	3.2×10-3	4.0×10-3	5 x10-3	ASTM D4716
Puncture Resistance	KN/m	0.17	0.17	0.17	0.17	ASTM D7005
Thickness	mm	6.3	7	8	9	ASTM D5199
Density	g/cm-3	0.94	0.94	0.94	0.94	ASTM D1505
Carbon Black Content	%	2	2	2	2	ASTM D1603
Tensile strength (MD)	kN/m	8	10	12	14	ASTM D7199
Hydraulic conductivity (MD)	m2/s	8	10	12	14	ASTM D4716
Unit weight	g/m2	200	200	200	200
Geotextile type	Continuous filament non-woven geotextile

product Advantages

3D composite drainage geonet

1、Strong drainage. 2、Extremely high tensile strength and shear strength. 3、Reduce the chance of geotextile embedded in the core of the network, maintaining long-term stable drainage. 4、long-term high pressure load. 5、Corrosion resistance, acid and alkaliresistance, long service life. 6、Construction is convenient, shorten the construction period and reduce the cost.

Machines

Product Application

1. Landfill drainage;

2. Roadbed and road drainage;

3. Railway drainage, tunnel drainage, underground structure drainage.

4.Theretaining back wall drainage,

5. Gardens and sports grounds drainage

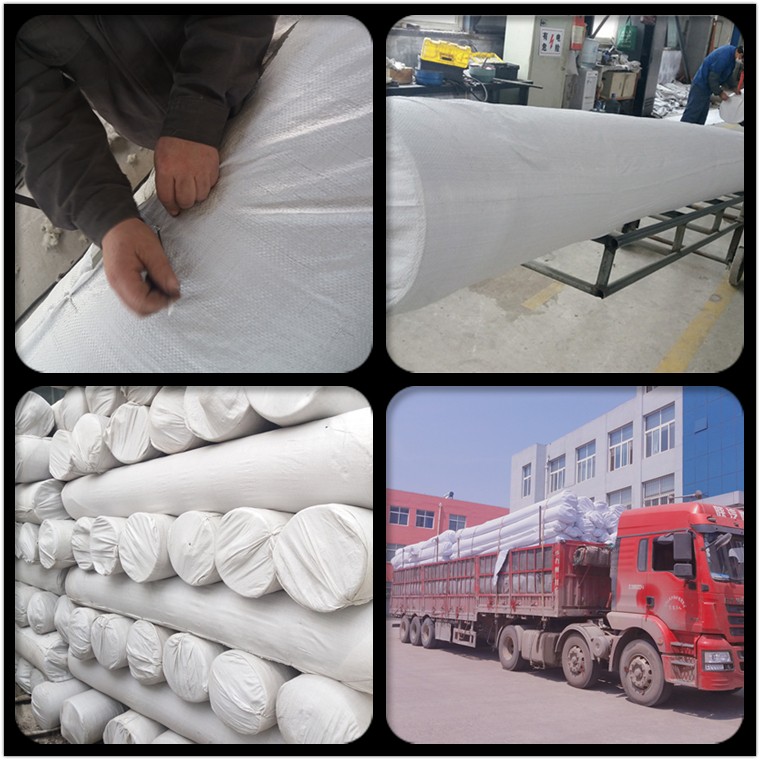

Packing & Delivery

Company Profile

Shandong Yibo Yangguang Engineering Materials Co., Ltd. is affiliated to Boda Construction Group. The company is located in Laiwu High-tech Zone, Jinan City, Shandong Province. It is a high-tech enterprise specializing in the research and development, manufacturing, sales and construction of geotechnical materials and related products including HDPE geomembrane, textured geomembrane, filament ( staple fiber ) geotextilecomposite geomembrane, EVA waterproof board, polymer self-adhesive waterproof board, bentonite waterproof blanket, composite drainage net and other geotechnical materials products. The products have been widely used in railways, bridges and tunnels, reservoirs and drainage, wetland parks, landfill, ash slag yard, antiseepage in mining area, salt chemical industry, agriculture, animal husbandry and fishery, and many other industries. Products have been exported to Europe and the United States, Southeast Asia, Africa and other countries and regions

FAQ

1. who are we?
We are based in Shandong, China, start from 2016,sell to North America(40.00%),Western Europe(20.00%),South Asia(20.00%),Northern Europe(10.00%),Eastern Europe(5.00%),Africa(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,GCL Liner,3D Composite Drainage Geonet,Composite Geomembrane

4. why should you buy from us not from other suppliers?
shandong yibo yangguang engineering materials co., ltd is with more than 20 years in producing geomembrane, geotextile, compsite geomembrane, gcl l iner, etc. we expecting to cooperate with you and hope that you can visit our factory to talk more.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: 30%deposit ,the blance is before the delivery
Language Spoken:English,Chinese
